Quick Details

  • Material: Carbon Steel
  • Technics: Forged
  • Type: Tee
  • Place of Origin: Henan, China (Mainland)
  • Model Number: JGD-B
  • Brand Name: HUAYUAN
  • Connection: Female Thread
  • Shape: Equal
  • Head Code: Square
  • Company type: Maunfacturer
  • Export experience: 15years
  • Size: DN15-DN80
  • Rubber material: EPDM,NBR,IIR,CR,SBR
  • Applicable medium: Water,oil,gas,weak acid
  • Pressure: 0.6-4.0Mpa
  • Certificate: ISO9001,BV
  • COLOR: balck
  • Warranty time: 3 years
  • kind: Pipe fitting

Packaging & Delivery

Packaging Details: rubber joint package :
outside packaging:wooden cases
inside packaging:carbon cases
Delivery Detail: 7~15 days after the advanced payment

EPDM Screw Thread Rubber Expansion Joint

Product Description

 High quality Screw Threaded Rubber Expansion Joint

      GongyiHuayuan rubber  joint   is   also called expansion joints or  rubber expansion  joint. It is a pipe joint of high-flexibility,  high-gas

 tightness, resistance to medium and climate. rubber expansion joints

are flexible connectors made from natural or synthetic elastomers

in which special fabrics are embedded  to provide physical reinforcement.

 rubber expansion joints provide a proven and flexible solution to  accommodate many types of movements and requirements of industrial plant and equipment.

    Screw Thread Rubber Expansion Joint with a variety of rubber linings to meet almost all kinds of medium,Easy to install with good performance and long service life.

DN15~DN80(other specifications can be customized)



Products material:

Body: Neoprene, EPDM, NBR, NB, CR, SBR, IIR, HNBR, SI, FLS, FPM, FFPM, ACM, with
Lining frame: Chinlon cord fabrics, Nylon cord Fabric or steel wire enhaced.
Flange: Carbon steel, Q235, cast iron, stainless seel, 302, 304 etc.
Flange Standard: ANSI, DIN, JIS, BT, GB(China), Such as: ANSI class125/150, DIN PN10/PN16, JIS5K/10K...
Character: Good characteristics of resistance of /oil/ heat/acid and alkali, high voltage, long-range elasticity, and the weight is light, etc.



·Other rubber material such as Nitrile,Hypalon,NR etc, also avaiable on requst.



Technical conditions of  Screw Threaded Rubber Expansion Joint



Working PressureMPa(kgf/cm2)

1.0(10)

Deflection Angel

(ª1+ª2)45

Burst PressureMPa(kgf/cm2)

3.0(30)

VacuumKPa(mm/Hg)

53.3(400)

Applicable temperature

- 15 ~ + 115 special accessible - 30 ~ + 250

Applicable Medium

Air,compressed air,water,sea water,hot water,oil,acid,alkali,etc



This rubber joint's main dimensions:

Nominal DiameterNeutral LengthMovements
mminchLExt.Comp.Lateral.Angular.(°)
150.52005-6222245°
200.752005-6222245°
2512005-6222245°
321.252005-6222245°
401.52005-6222245°
5022005-6222245°
652.52658-10242445°
8032858-10242445°

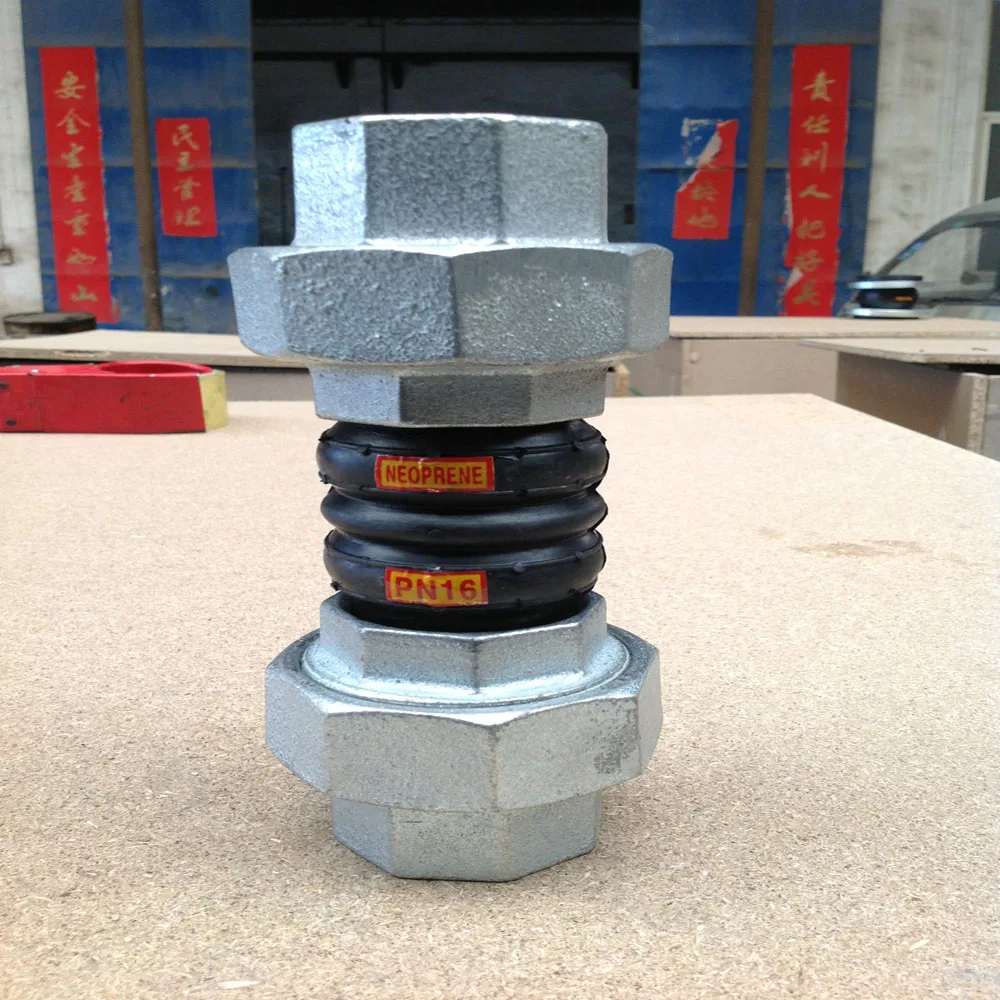

Details photos show of rubber joint






Industries supplied by Huayuan  include :


  • Petrochemical & Pharmaceutical
  • Food & Agriculture
  • Combustion
  • Paper & Pulp
  • Heating & Ventilation, Air Conditioning & Refrigeration
  • Construction, Iron & Steel
  • Nuclear & Power Generation
  • Water & Sewag
  • Marine, Automotive & Defence


Packaging & Shipping



All the cargoes under inspection before the shipment.





 Conventional packing:

For the Threaded Rubber  Expansion Joint,  we can use carton case of  the Inner package.



For the Outer package, we use the wooden case.







 Shipping:

1.Lead time: about 25-30 days after order is confirmed.

2.If the order is urgent, we will try to give the best delivery time;

3.Our delivery time is accurate and fast, it is one of our advantages;

4.We cooperate with many famous logistic companies to ensure that we can ship your cargo to you on

 time.

5.There are many kinds of transport , depending on your situation  ,you can choose the best transport . We will send the products according to your requirements.





In addition, we can change the shape of the packaging according to customer requirements.



Company Information

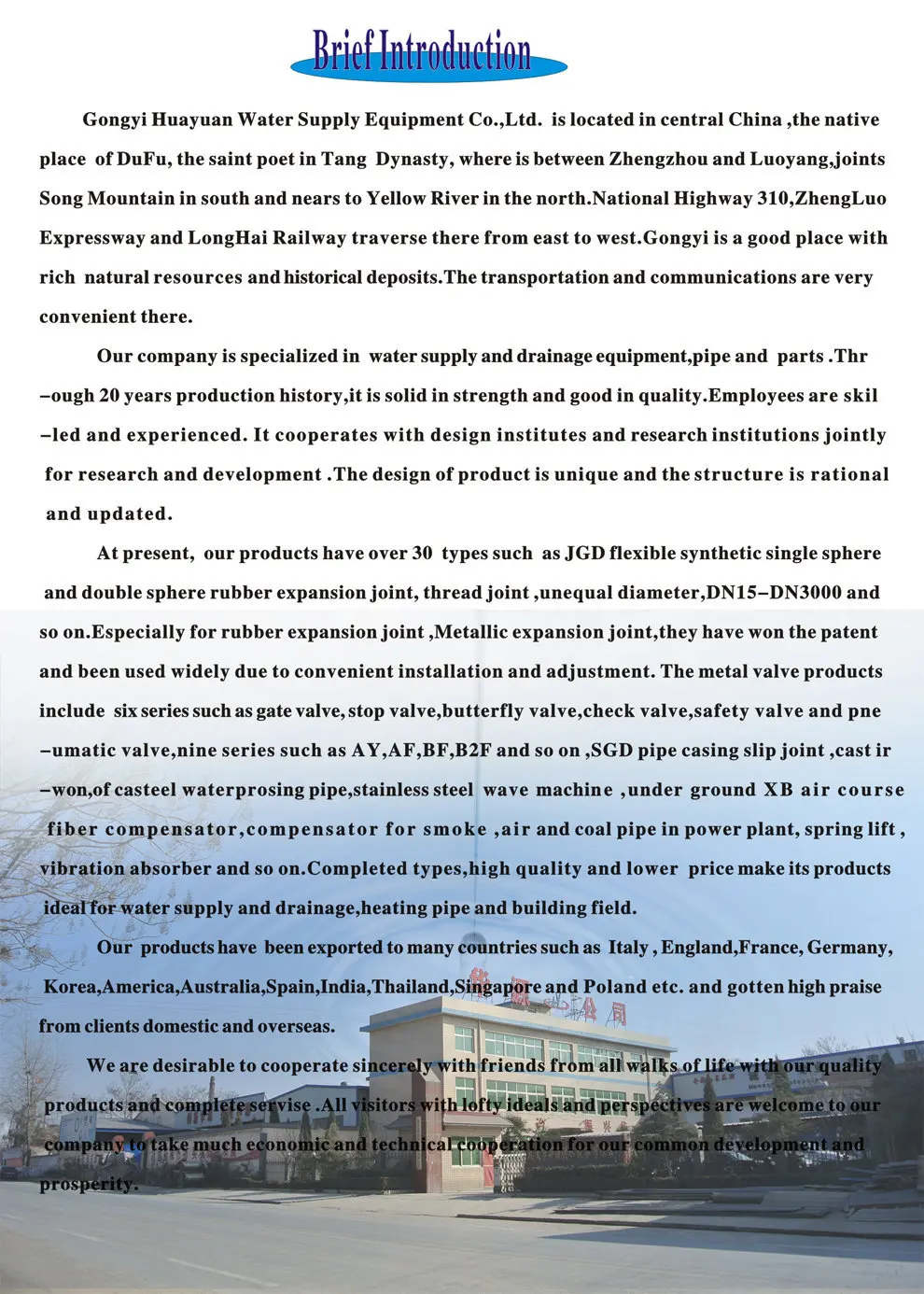

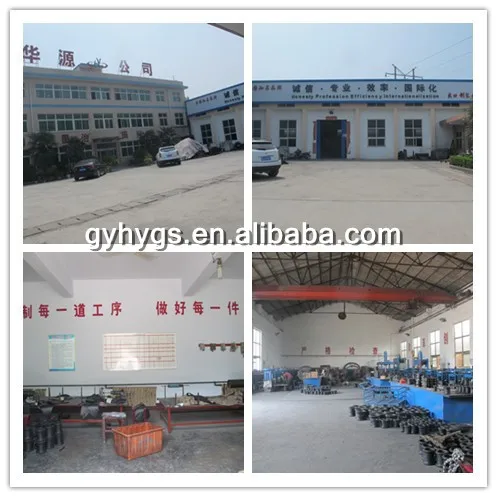

     Gongyi Huayuan Water Supply Equirement Co.,Ltd.   Profile




Why us:



Gongyi Huayuan Water supply Equirement  Co.,Ltd. is a leading manufacturer of rubber flexible joint in china,  we have:



(1) Strong R&D strength;



(2) Strict Quality Control System;



(3) Perfect Test System;



(4) Professional After-sale Service Team;





Our products are subject to stringent checks, so you can rest assured that the quality of products .And our products have gotten high praise from clients domestic and overseas.



Our service



  • We offer good quality products in competitive price.
  • We have rich experience in this industry.
  • We have short delivery time .
  • Shipped the goods on time.
  • Meet your special requirements.
Thanks for your attention. For more information, please feel free to contact  me.

  Quality Control   and  Customer  test  process



Our tenet :Your trust is our best honor and we will manufacture high-quality products for you.



Main products of our company





FAQ



FAQ:

Q : Can you make the product as per client's requirement?

A: Yes, can make it with your exact requirement.

Q: What is your payment terms?

A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight

Q: can i visit your factory before the oreder?

A: Yes, welcome to our factory to check the quality.

Q: Where is your nearest loading port ?

A: Shanghai, Qingdao or Tianjin  ,China.

Q: How can you guarantee the quality or any warranty?

A: If any quality problems during use, all the products can be returned

    or according to consumer's requests.

Q:Do you accepted small quantity order?

A: Of course we do.

Q:Can we choose different material?

A:  Yes ,the material can be chose according to your requirement.

Q:And What's your shipment and delivery time?

A:By sea or air.Normally 7~14 Days for delivery ,according to your order quantity.

Q:And what's your packing?

A: carton cases inside ,export wooden cases outside



Looking  forward  to cooperate with you.
